Noise cancelling microphone

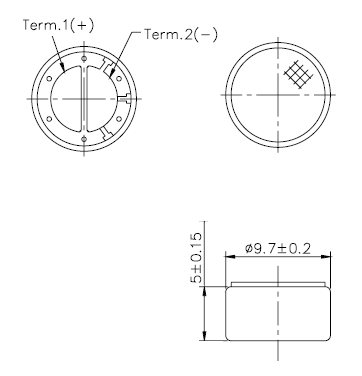

Condenser microphone

    SPECIFICATIONS
1 Electret Type Back type
2 Sensitivity -47±3dB (0dB=1V/Pa,1KHz) 0 Deg
3 Output Impedance (Max) 680Ω
4 Directivity Unidirectional
5 Frequency Range 70-20,000Hz
6 Max. Operation Voltage 10V
7 Standard Operation Voltage 1.5V
8 Current Consumption Max.0.5mA
9 Sensitivity Reduction Within -3dB 0dB=1V/Pa,1KHz Vs=1.5 to 1.0V
10 S/N Ratio > 60dB
11 Operating Temperature -25~+70℃
12 Storage Temperature -40~+70℃

















Data Sheet
