Home  >> Unidirectional > AM-U60F40-CW



Omnidirectional Unidirectional Noise Cancelling Entire microphpone

Noise cancelling microphone

Condenser microphone

1 Electret Type Back type
2 Sensitivity -40±3dB (0dB=1V/Pa,1KHz) 0 Degree
3 Standard Operation Voltage 2.0V
4 Output Impedance (Max) 2.2KΩ
5 Directivity Unidirectional
6 Frequency Range 70 - 20K Hz
7 Max.Operation Voltage 10V
8 Current Consumption Max.0.5mA
9 Sensitivity Reduction Within -3dB 0dB=1V/Pa,1KHz Vs=2.0 to 1.5V
10 S/N Ratio > 55dB
11 Operating Temperature -20~+60℃
12 Storage Temperature -30~+70℃

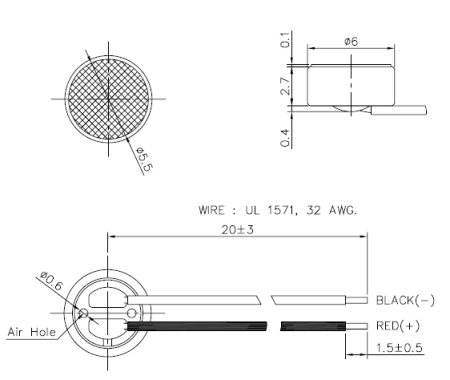

Data Sheet
