Omnidirectional Unidirectional Noise Cancelling Entire microphpone

Noise cancelling microphone

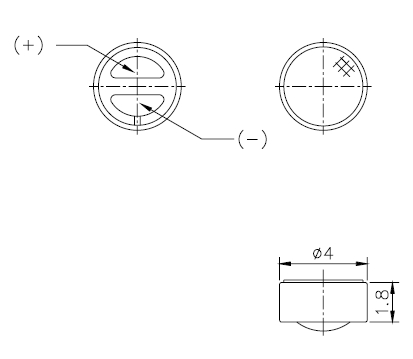

Condenser microphone

1 Electret Type Back type
2 Sensitivity -50±3dB (0dB=1V/Pa,1KHz
3 Output Impedance (Max) 2.2KΩ
4 Directivity Unidirectional
5 Frequency Range 100 - 16K Hz
6 Max. Operation Voltage 10V
7 Standard Operation Voltage 3.0V
8 Current Consumption Max.0.5mA
9 Sensitivity Reduction Within -3dB 0dB=1V/Pa,1KHz Vs=3.0 to 2.5V
10 S/N Ratio > 55dB
11 Operating Temperature -20~+60℃
12 Storage Temperature -30~+70℃

















Data Sheet
