Home  >> Omnidirectional > AM-O97A36-NW



Omnidirectional Unidirectional Noise Cancelling Entire microphpone

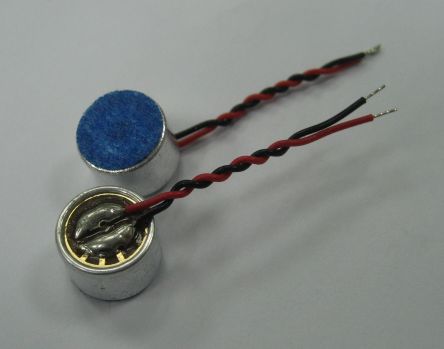

Condenser Microphone Microphone

1 Electret Type Foil type
2 Sensitivity -36±3dB (0dB=1V/Pa,1KHz) Band form 300 to 3K Hz
3 Output Impedance (Max) 2.2KΩ
4 Directivity Omnidirectional
5 Frequency Range 70-20,000Hz
6 Max.Operation Voltage 10V
7 Standard Operation Voltage 2.0V
8 Current Consumption Max.0.5mA
9 Sensitivity Reduction Within -3dB 0dB=1V/Pa,1KHz Vs=2.0 to 1.5V
10 S/N Ratio > 60dB
11 Operating Temperature -25~+70℃
12 Storage Temperature -40~+70℃

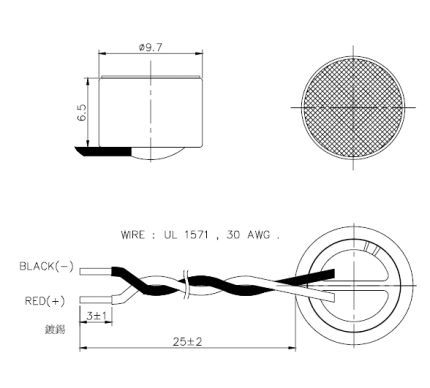

 Data Sheet
