Home  >> Noise Cancelling > AM-N97C52-NT



Omnidirectional Unidirectional Noise Cancelling Entire microphpone

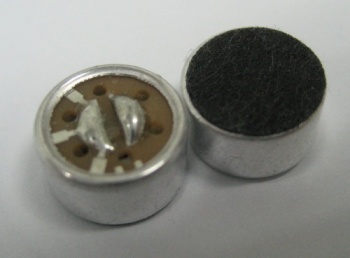

Noise cancelling microphone

Condenser microphone

1 Electret Type Foil type
2 Sensitivity -52±3dB (0dB=1V/Pa,1KHz)
3 Output Impedance (Max) 2.2KΩ
4 Directivity Noise Cancelling
5 Frequency Range 70 - 20K Hz
6 Max.Operation Voltage 10V
7 Standard Operation Voltage 4.5V
8 Current Consumption Max.0.5mA
9 Sensitivity Reduction Within -3dB 0dB=1V/Pa,1KHz Vs=4.5 to 4.0V
10 S/N Ratio > 60dB
11 Operating Temperature -20~+60℃
12 Storage Temperature -30~+70℃

















Data Sheet
