Home  >> Noise Cancelling > AM-N60C50-NT



Omnidirectional Unidirectional Noise Cancelling Entire microphpone

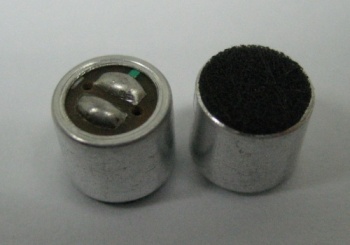

Noise cancelling microphone

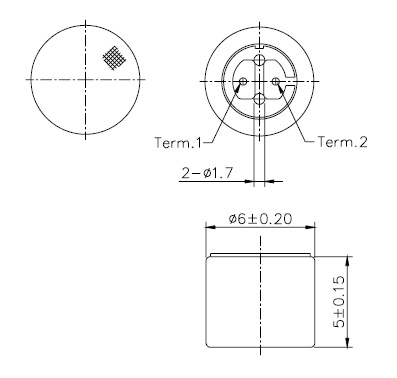

Condenser microphone

    SPECIFICATIONS
1 Electret Type Foil type
2 Sensitivity -46±3dB (0dB=1V/Pa,1KHz)
3 Output Impedance (Max) 2.2KΩ
4 Directivity Noise Canceling
5 Frequency Range 70-20,000Hz
6 Max. Operation Voltage 10V
7 Standard Operation Voltage 10V
8 Current Consumption Max.0.5mA
9 Sensitivity Reduction Within -3dB 0dB=1V/Pa,1KHz Vs=2.0 to 1.5V
10 S/N Ratio > 50dB
11 Operating Temperature -25~+70℃
12 Storage Temperature -40~+70℃

















Data Sheet
